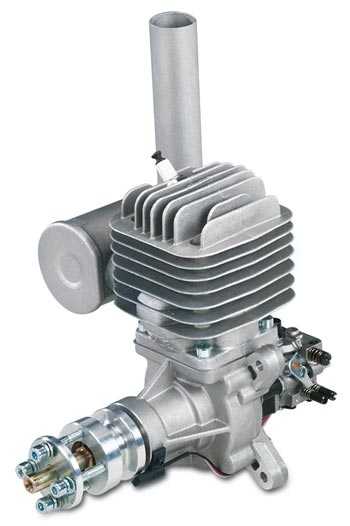

DLE55

Артикул: 3435
116243 KZT

(нет на складе)

Specifications:
Stock Number: DLEG0055
Displacement: 55.6 cc (3.392 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1.65 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller

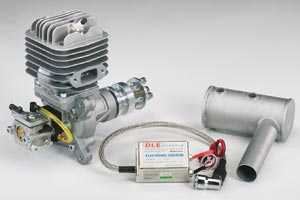

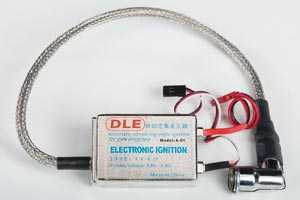

Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 22x8, 22x10, 23x8 & 23x10

Technical Data:
Manifold: 4-petal, V-type, reed-valve, bottom induction
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)

Recommended Products:
DLEQ0551 DLE Engines Propeller Drill Guide DLE55
HCAM6351 Hobbico^® HydriMax™ Ultra 6V 2000mAh NiMH Pack
KSFP4195 Klotz 2-Cycle Synthetic 32:1 – 50:1 Gas R/C ModeLube
XOAQ2208 Xoar 22x8 PJA Beech Propeller

Recommended Options:
FPWP4195 FlightPower^® EON-X Lite 7.4V 2100mAh 25C LiPo Pack
FPWM0290 FlightPower 5A Voltage Regulator (if FPWM4195 is used.)
HCAM6435 Hobbico LiFeSource™ 6.6V 1100mAh 10C LiFe Pack
XOAQ2210 Xoar 22x10 PJA Beech Propeller
XOAQ2308 Xoar 23x8 PJA Beech Propeller
XOAQ2310 Xoar 23x10 PJA Beech Propeller
