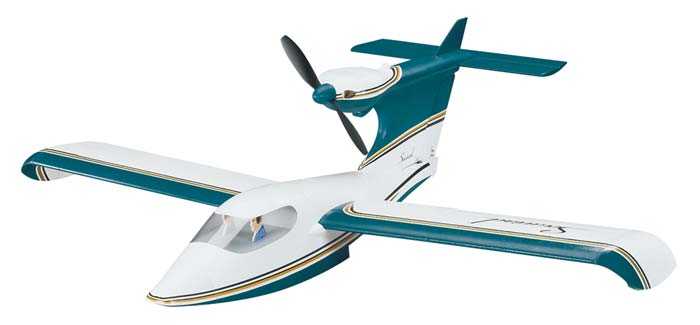

This is the electric powered, radio controlled, almost ready to fly
RX-R (Receiver Ready) Great Planes Seawind Seaplane
For Intermediate to Advanced Modeler/Fliers.
Park Pilot Program Legal Aircraft

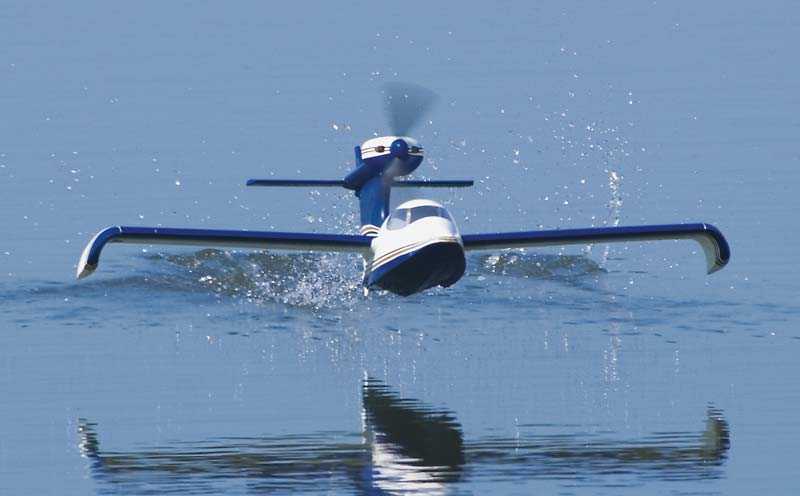

Can perform ROW (Rise Off Water) takeoffs and also hand-launched and landed on grass. This version includes motor, ESC and servos.
FEATURES: Construction: Aerocell foam, painted, color scheme is Blue and White with Black and Orange stripes Wings: One-piece Motor: Great Planes ElectriFly Rimfire 28-30-950 Brushless Outrunner, GPMG4560 Electronic Speed Control: Great Planes Silver Series 25A Brushless, GPMM1820 Servos: Three ElectriFly ES50 Nano Servos,GPMM1210 Fuselage: Aerocell foam with plywood servo tray and pushrods pre-installed Radio Compartment: Accessible through removable canopy/hatch which is secured by rare earth magnets Cowling: Painted plastic Canopy: Clear molded plastic with two profile pilot figures and instrument panel detail Aileron Control: Single servo Propeller: Great Planes 8x6 Power Flow Slo-Flyer (GPMQ6610) Spinner: Three, made of foam Blue in color 1.2" (30mm) diameter Hardware: Full set included Building Time: Ready to fly in 2-3 hours Motor Mount: Constructed of plywood and pre-installed Warranty: Great Planes Model Manufacturing Company guarantees this kit free from defects in both materials and workmanship at date of purchase.

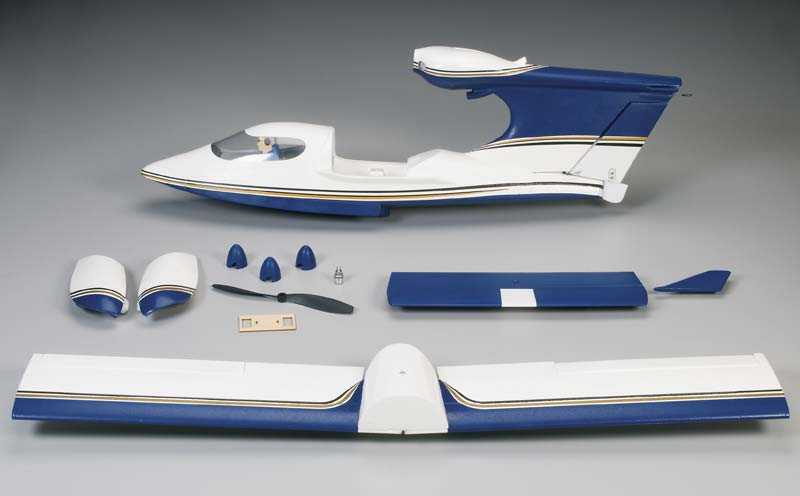

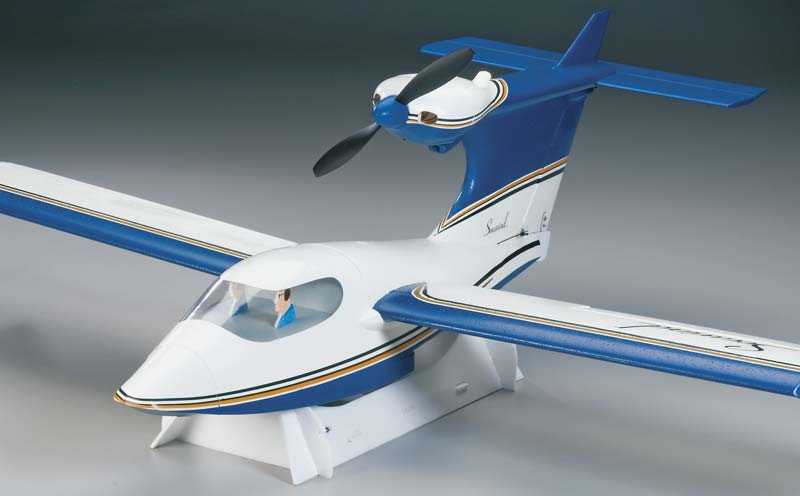

INCLUDES: ElectriFly by Great Planes Seawind Sport Scale Seaplane, all hardware photo-illustrated instructions, cradle support stand, 8x6 propeller prop adapter, brushless outrunner motor, three nano servos, electronic speed control and decals
REQUIRES: Radio: 4-channel with mini receiver Servo Extension: One 6" (150mm) for aileron servo Battery: 11.1V 910-1500mAh LiPo Battery Charger: LiPo compatible Misc. Items: Foam safe CA or epoxy glue and building and field equipment
SPECS: Wingspan: 39.5" (1005mm) Wing Area: 234 sq in (15.1 sq dm) Weight: 24 - 26oz (680 - 735g) Wing Loading: 14.8 - 16oz sq ft (45 - 49 g/sq dm) Length: 33.5" (845mm) Airfoil: Flat bottom Center of Gravity: 1" (25.4mm) measured at fuselage when using balancing stand Control Throws- Low Rate High Rate Ailerons: Up & Down ¼" (6.35mm) 7/16" (11mm) Rudder: Right & Left 1" (25.4mm) 1¼" (38mm) Elevator: Up & Down 3/8" (9.5mm) 5/8" (16mm)
