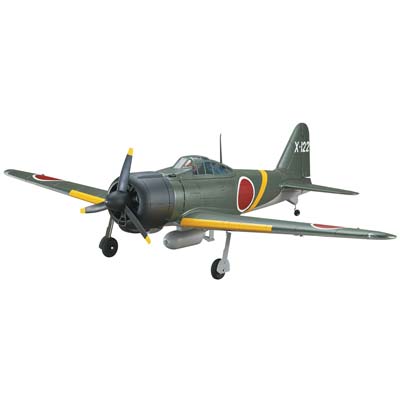

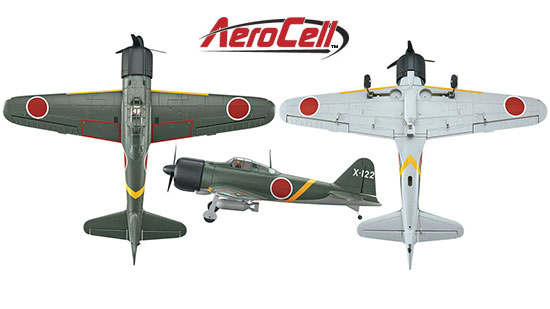

This is the electric powered, radio controlled, Tx-R Prime
Select Scale A6M2 Zero from Flyzone.
This is the Rx-R (Receiver Ready) version that requires receiver,
battery and charger.
Includes motor, ESC and servos.
Features
Construction: AeroCell foam
Wing: One piece, with ailerons and flaps
Aileron Control: Dual servo
Motor: 1000kV brushless 77g outrunner
ESC: 40A

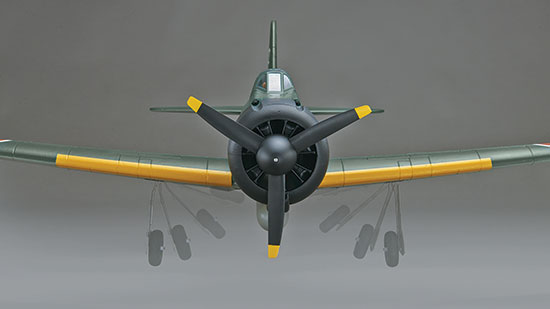

Landing Gear: Electric retractable, 2" (51mm) diameter main wheels
prebent tail torque rod with 0.75" (19mm) diameter steerable tail
wheel

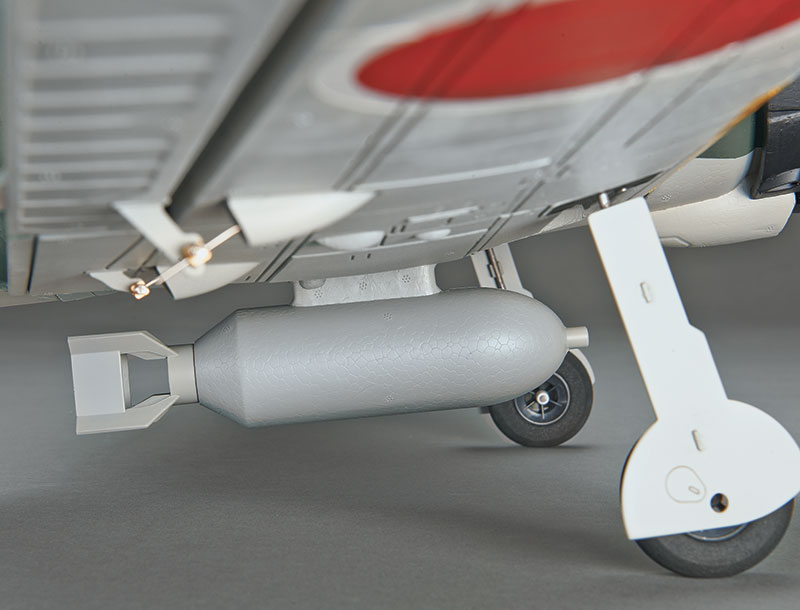

Bomb: AeroCell foam
To release the bomb remotely, a 7-channel transmitter and receiver
will be required. Or, the flap servo may be disconnected from the
receiver, making a vacant channel available for the bomb release.
This method disables the flaps. Or, the flap and bomb servos may be
connected.

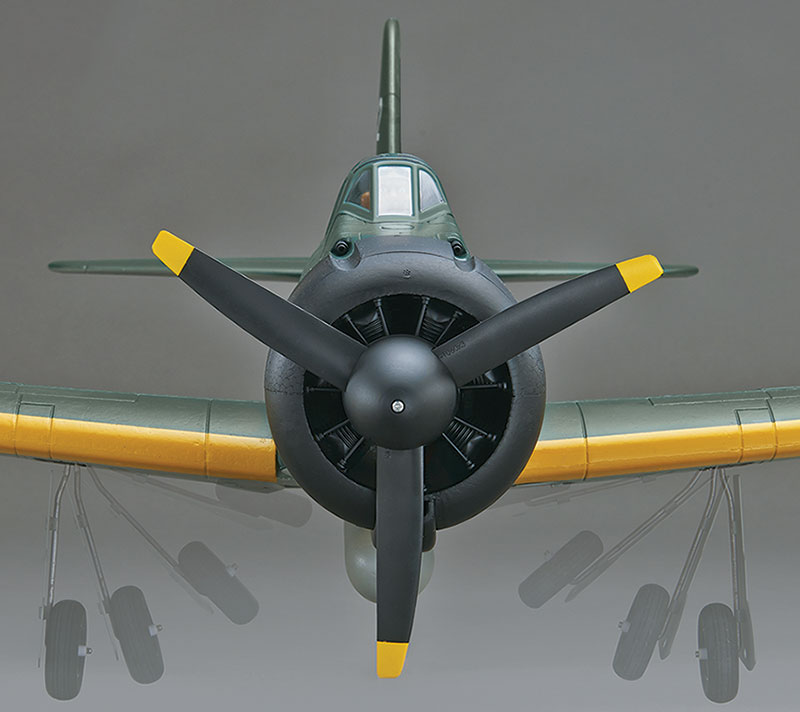

Propeller: 10x6 three blade
Spinner: Plastic 2" (51mm) diameter, black in color
Warranty: FlyZone guarantees this kit to be free from defects in both
material and workmanship at the date of purchase. This warranty
does not cover any component parts damaged by use or modification.
Includes
Tx-R Prime Select Scale Zero with Motor, ESC, Servos

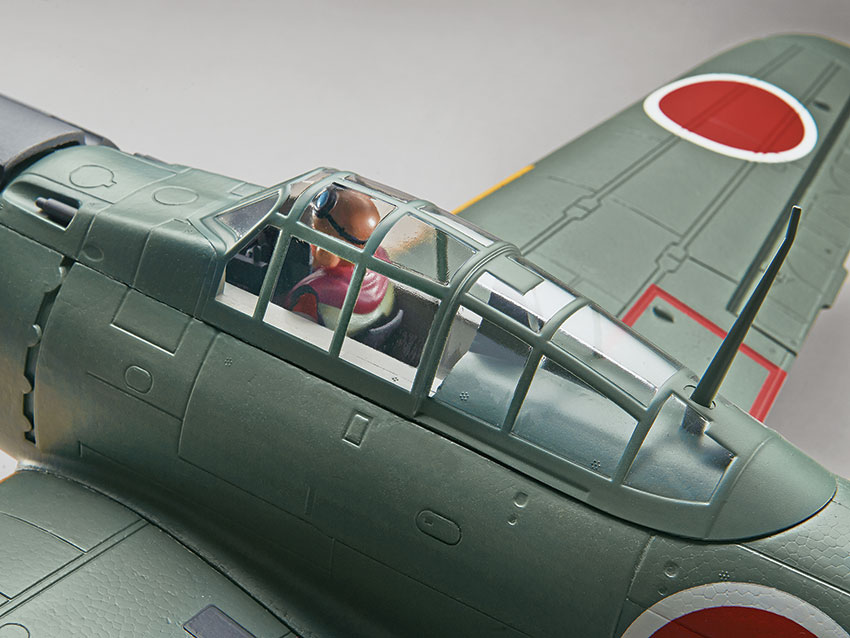

Propeller, Spinner, Bomb & Bomb Drop Mechanism, Pilot Figure

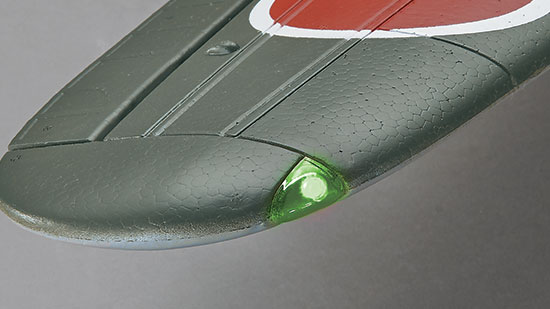

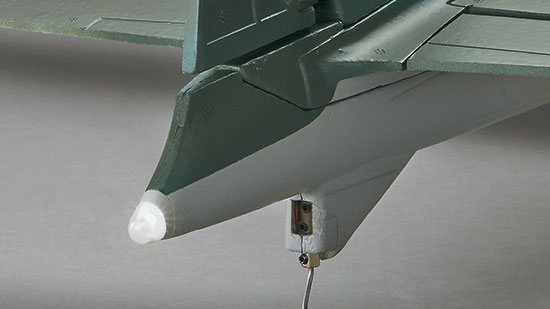

Navigation Lights and Instruction Manual
Requires
Transmitter: 7+ channel SLT, receiver, or AnyLink 2 and compatible
transmitter (at least 6-ch if bomb release will not be used)
Y-Harness: To operate flaps and release bomb if using 6-ch TX
Battery: 3S-4S 30C LiPo at least 2200mAh
Battery Charger: To match selected battery
LiPo charging bag, field equipment
Specifications
Wingspan: 45" (1145mm)
Wing Area: 307 sq in (19.8 sq dm)
Wing Loading: 17-19 oz sq/ft (52-58 g sq/dm)
Length: 37" (940mm)
Center of Gravity (CG): 2-3/4" (70mm) back from leading edge of wing
at fuselage
Control Throws- Low Rate High Rate
Ailerons, up & down: 1/4" (6mm) 9° 3/8" (10mm) 14°
Elevator, up % down: 3/8" (10mm) 12° 1/2" (13mm) 15°
Rudder, left & right: 1/2" (13mm) 10° 3/4" (19mm) 15°
Flaps: 1/2 flap 3/8" (10mm) 15° full flap 7/8" (22mm) 35°
